FEATURES SPECIFICATIONS
Listed to UL924 and tested to CSA C22.2
NO.141 Field or factory installation
Low energy consumption CEC
Title20 compliance
Battery:Over Charge Protection
Over Discharge Protection
Short Circuit Protection
Input Current:100mA max.
Recharge Power:5W max.
Output Voltage:15~58Vdc/50~150Vdc
Emergency Power:4W, 8W, 12W, 15W, 18W
Recharge Time:24Hrs
Discharge Time:1.5H
Warranty:5 Years
Surge Protection:Live-Neutral 3KV
PDF FILES
HPO-ACT - triac and non-dimm 8W, 12W, 15W

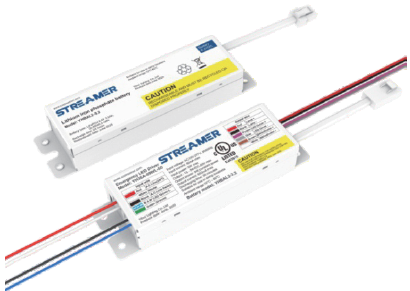

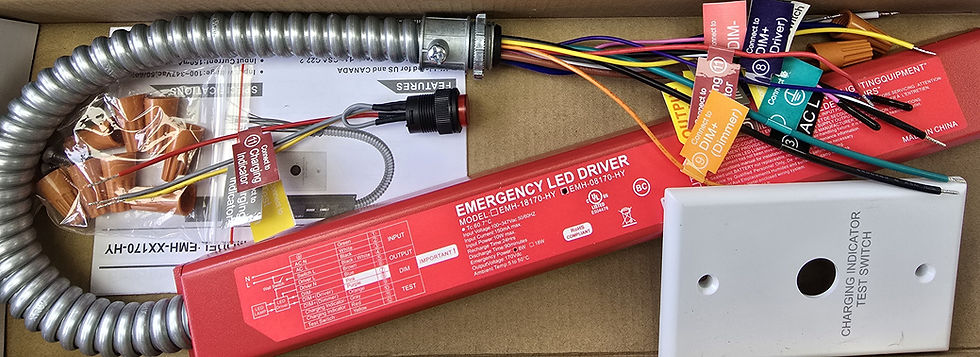

EM B/U hp and st series, triac and 0-10 VDC
ITEM CODES
LMDP-HP8ACT-170P: HPO, 8W, Triac and non-dimm fixtures
LMDP-HP12ACT-170P: HPO, 12W, Triac and non-dimm fixtures
LMDP-HP15ACT-170P: HPO, 15W, Triac and non-dimm fixtures
LMDP-HP8ACT-170P: HPO, 8W, Triac and non-dimm fixtures
LMDP-HP04150-D1-U1: HPY, 4W, 0-10 VDC dimm, 50-150 VDC output, 100-277 VAC input
LMDP-HP8-D2-U2: HPB 8W, Triac and 0-10 VDC dimm, 170 VDC output, 100-347 VAC input, LiFePO4 battery
LMDP-HP18-D2-U2: HPB 18W, Triac and 0-10 VDC dimm, 170 VDC output, 100-347 VAC input, LiFePO4 battery
LMDP-ST4AC-170P: ST 4W, Triac and Non dimm, 170 VDC output, 100-277 VAC input
